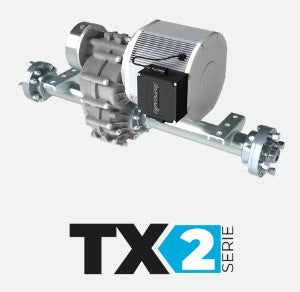

Axle Bridge TX2 8.0kW 48V

Each e-Comer electric motor is an industrial product manufactured through a standardized production process, designed for traction solutions, hydraulic systems, and with standard IEC and NEMA flanges.

These highly efficient synchronous motors are extremely versatile and reliable, ideal for the electrification of prototypes, small series, and industrial production in the following sectors:

• Earthmoving: excavators, track loaders, bulldozers, wheel loaders, drilling rigs, and dump trucks
• Nautical and Marine: boats, ferries, ships, lake boats, river boats, and canal boats
• Industrial: transport trolleys, forklifts, platforms, cranes, hoists, and pallet jacks
• Agriculture and Livestock: tractors, seeders, harvesters, lawnmowers, articulated loaders, and irrigation machines

Technical Specifications

• Motor Type: Synchronous IPM + EM Brake – Interior Permanent Magnet
• Manufacturer: e-Comer
• Rated Power (S2-60min): 8,000 W
• Supply Voltage: 48 V
• Rated Speed (S2-60min): 2,500 rpm
• Number of Poles: 8
• Peak Torque (S2-5min): 51.0 Nm
• Cooling: Air
• Protection Class: IP67
• Flange Type: Standard "BMW" – 4 bolts
• Integrated with: EMB Electric Parking Brake

Custom Configuration

To define your axle's configuration, you need to provide us with the following parameters:

• Reduction Ratio: 5 – 7 – 9 – 10 – 12 – 16 – 22* – 27* – 35* – 43* – 56* – 80*
• Track Width (A): 569 – 1,988 mm**
• Mounting Point Center Distance (B): 399 – 1,818 mm**

* Ratios marked with an asterisk require an additional gear and incur an extra charge.
** Measure within the indicated range, at intervals of no less than 10 mm.

📄 For additional technical values, please refer to the attached Motor Technical Data Sheet and Product Technical Data Sheet.
